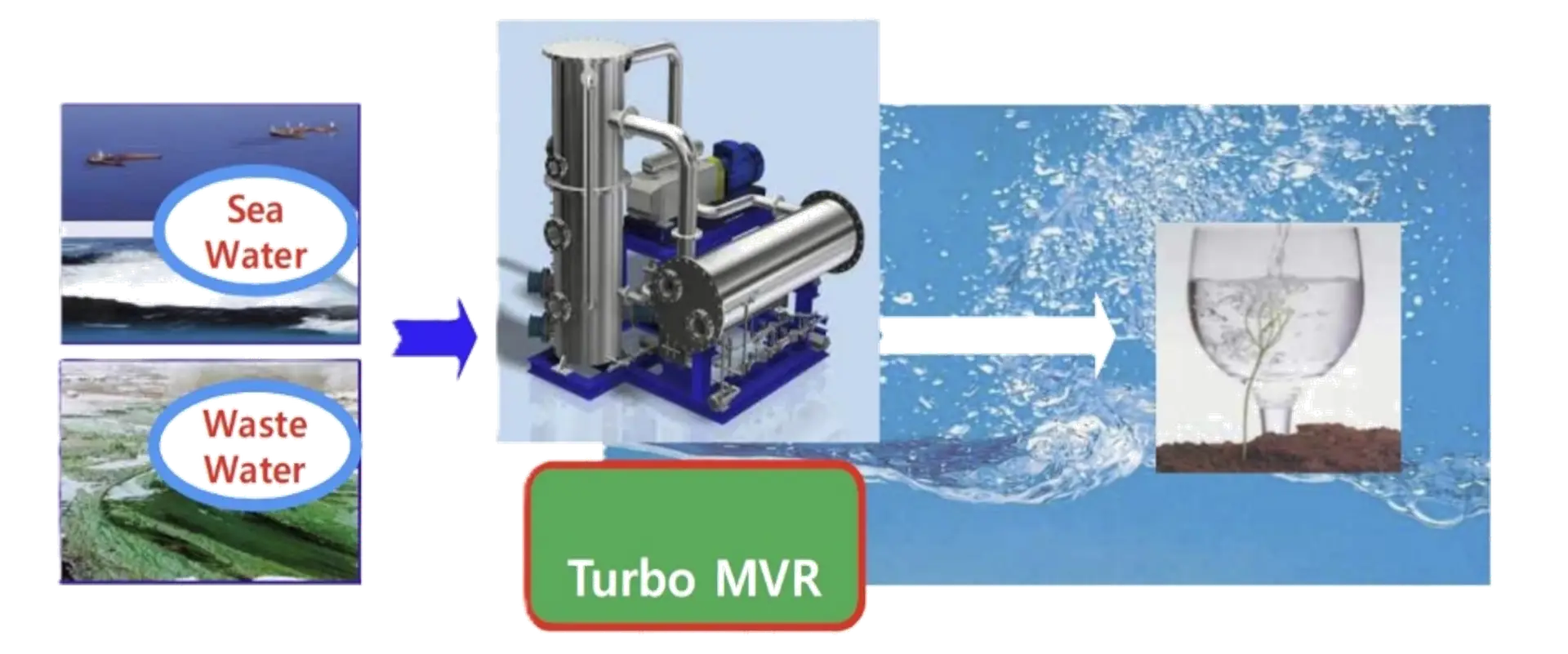

Our packaged Mechanical Vapor Recompression (MVR) systems purify seawater, brackish water, polluted groundwater, and wastewater using an efficient heat pump process. These compression distillation systems offer a reliable and energy-efficient way to consistently produce high-quality fresh water. The evaporation process in our systems features a custom-engineered turbo compressor, enabling the cost-effective generation of ultra-pure water suitable for drinking or reuse in industrial settings.

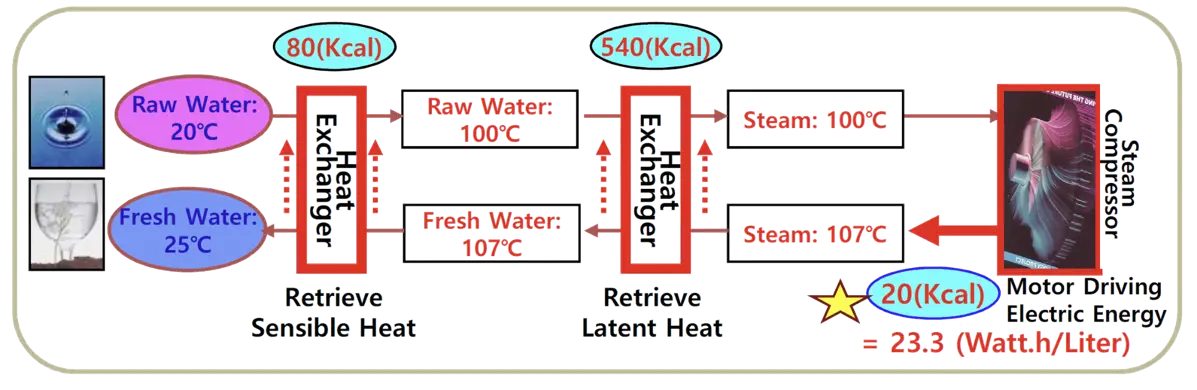

How does the Turbo MVR distiller system work in more detail?

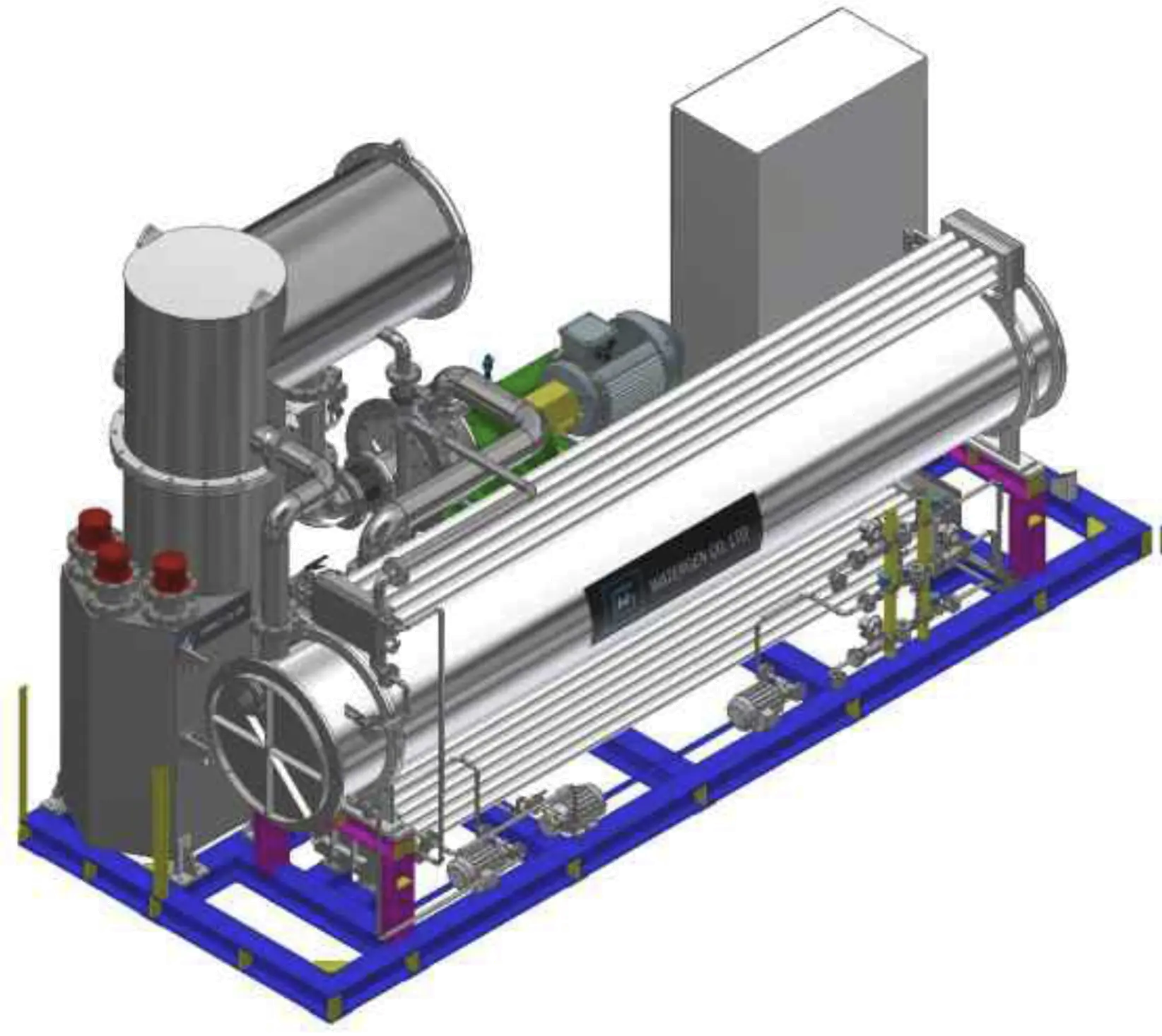

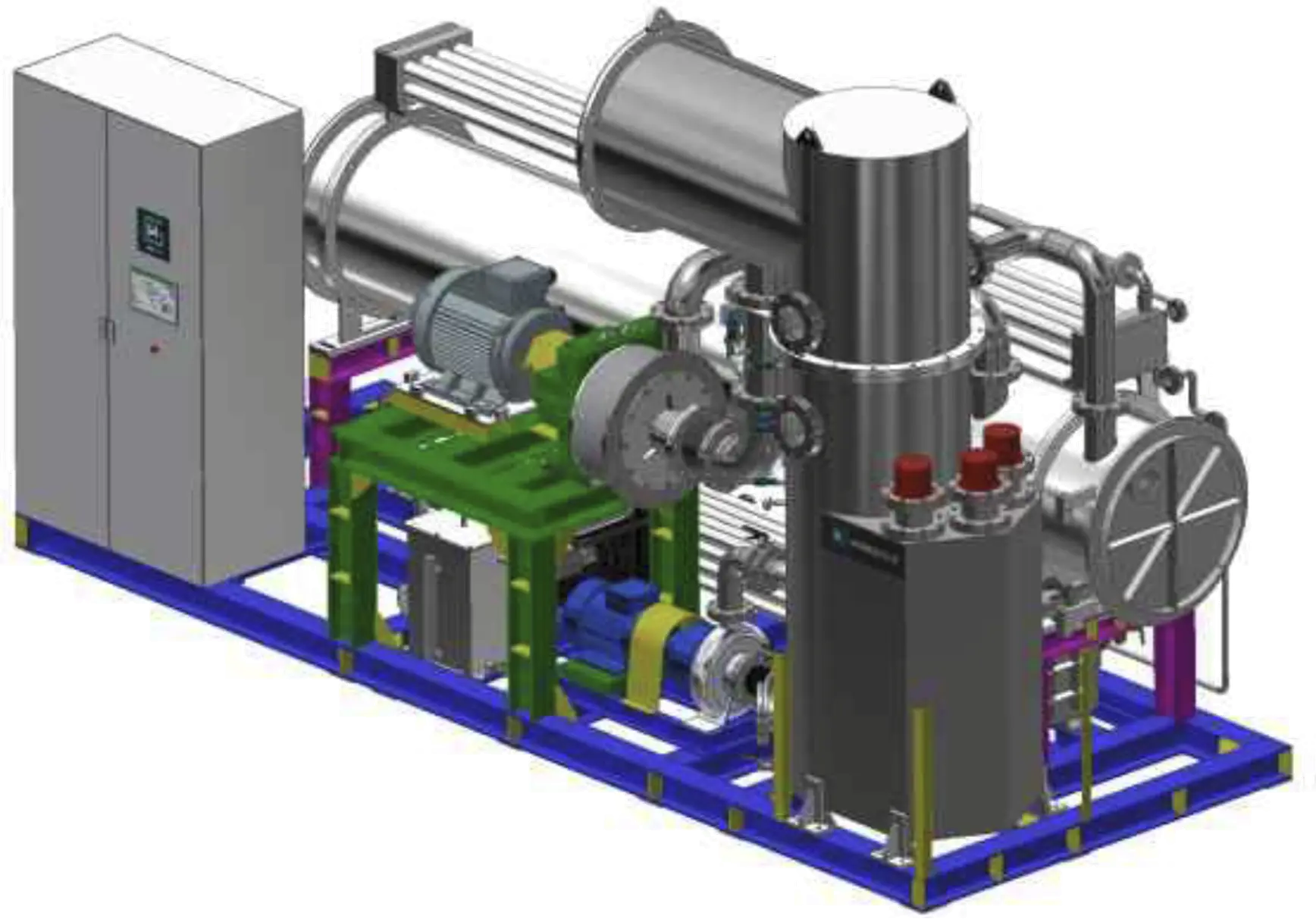

Turbo- MVR Distiller Model & Dimension

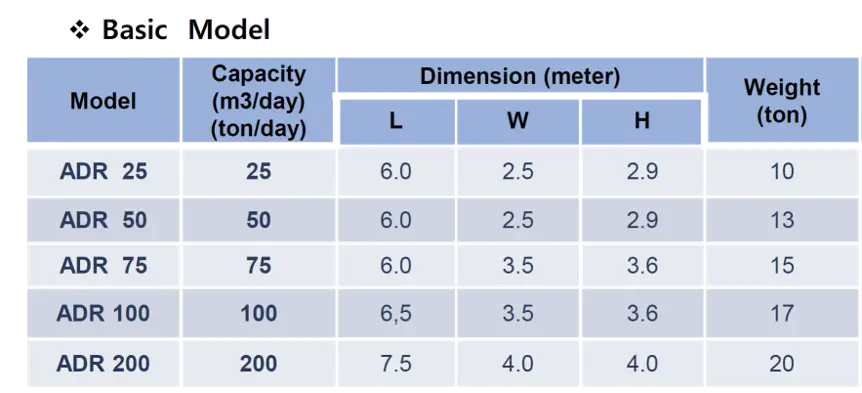

Basic Model
Model
Capacity (m³/day) (ton/day)
Dimension (meter)
Weight (ton)
L
W
H
ADR 25
25
6.0
2.5
2.9
10
ADR 50
50
6.0
2.5
2.9
13
ADR 75
75
6.0
3.5
3.6
15
ADR 100
100
6.5
3.5
3.6
17
ADR 200
200
7.5
4.0
4.0
20

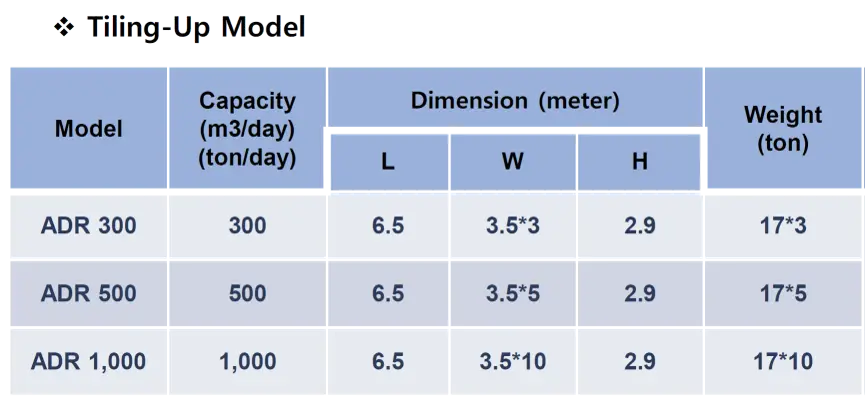

Tiling-Up Model
Model
Capacity (m³/day) (ton/day)
Dimension (meter)
Weight (ton)
L
W
H
ADR 300
300
6.5
3.5×3
2.9
17×3
ADR 500
500
6.5
3.5×5
2.9
17×5
ADR 1,000
1,000
6.5
3.5×10
2.9
17×10

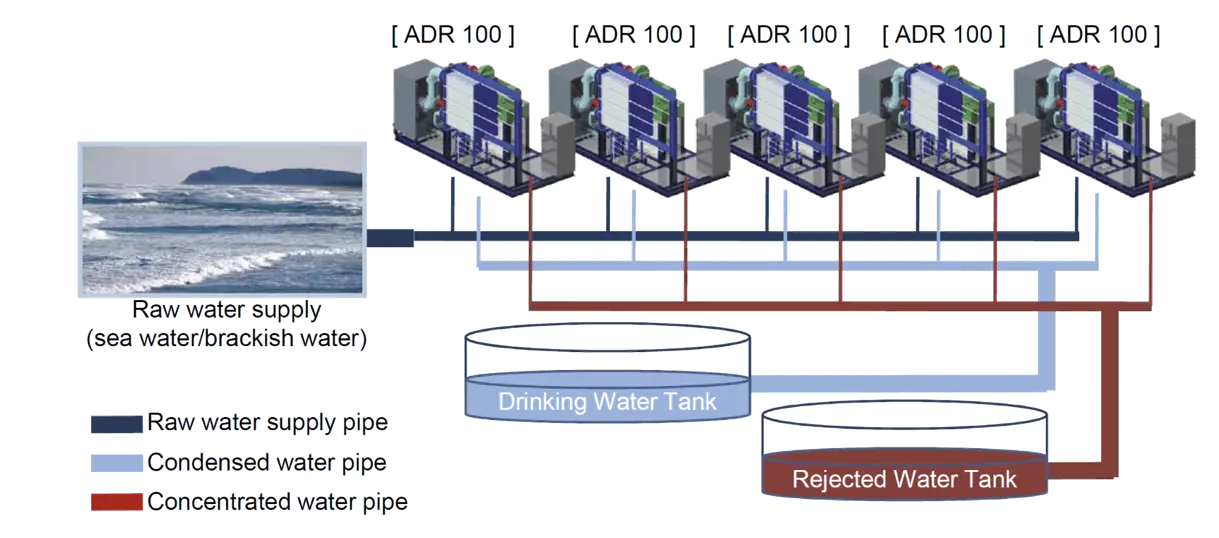

– According to the user’s requirement, we can meet the requested capacity by tiling-up model through combining our MVR distiller ADR 100.
– In case of increasing water consumption after installing MVR distiller, it is possible to add additional MVR distiller easily.
